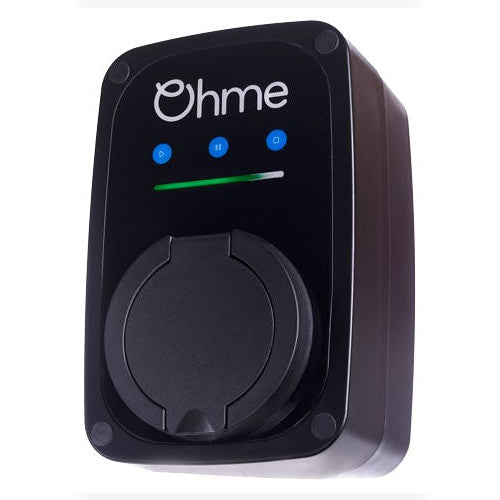

OHME OHMEX1GB003-BL 7.4KW ePod Home EV Charger Type 2 Black Only In ElectoGb

*Free next day delivery*

(Orders must be placed before 2pm, excludes weekends & subject to stock availability)

The OHME OHMEX1GB003-BL 7.4KW ePod Home EV Charger Type 2 Black features a compact and discreet design and is ready for your EV, whatever the make or model.

OHME OHMEX1GB003-BL 7.4KW ePod Home EV Charger Type 2 Black Features & Benefits:

• Compliant with new Smart Charger Regulations
• Untethered model
• Compatible with Type 1 and Type 2 electric vehicles
• Power: 7kW (25 miles per hour)
• Charge via mobile app or interactive buttons on the ePod
• 230mm (H) x 140mm (W) x 100 mm (D)
• Warranty: 3 years
• 7.4kW of power, 8x faster than a 3-pin plug, perfect for overnight charging
• Control your charging sessions via the Ohme smartphone app or the buttons or the charger
• Integrates with all energy providers, including Octopus & OVO smart EV tariffs
• Dynamic charging to align with the greenest and cheapest times to charge

Model information

Order code OHMEX1GB003-BL
Model description Ohme ePod

Electrical specs

Power rating 7.4kW
Rated current 32A max
Nominal supply 230V AC, 50/60 HZ, single-phase
Supply connections L+N+E 6mm2
Overcurrent protection Not fitted, to be fitted separately
Earth leakage protection RCD Type A 30 mA with integral 6 mA DC, built-in protective earth neutral (PEN) fault detector
Status indication 5 colour LED indication strip (green, blue, yellow, white, purple)
Charging mode Mode 3
Socket Type 2 socket to IEC62196
Supply cable entry Cable entry through the rear or underside of the unit, suitable for up to 6mm2 conductor size. 25mm gland and a blanking grommet is provided

Mechanical specs

Dimensions (H/W/D) 230mm x 140mm x 100mm
Unit weight 1.5kg (shipping weight: 1.9kg)
Mounting location Wall or post mounted, indoor or outdoor
Operating temperature -25°C to 45°C
Storage temperature -40°C to 85°C
Operating humidity 5 - 95% RH
Enclosure PC945(GG), Fire Rated (V-0 UL94)
Ingress protection rating IP54
Impact rating IK08
Standard finish Black

Connectivity & technology specs

Connectivity 3G/4G multinet sim card (cost covered by Ohme for the first 3 years)
Network connection Automatic network connection through 4G mobile phone network
Control Via the three buttons on the charger or via the Ohme smartphone app
Technology Dynamic load balancing with optional CT clamp
Upgrades Over-the-air firmware & software upgrades

Compliance

UKCA marked
UK Smart Charging Regulations 2021 compliant
OZEV EVHS & WCS grants approved (UK)
SEAI grant approved (Ireland)
The Ohme ePod complies with the relevant elements of: BS EN BS EN 61851-1:2019, BS IEC 62955:2018, BS EN IEC 61000-6-3:2021,
BS EN IEC 61000-6-1:2019, IEC62196-1, 722.411.4.1 (iv) 543.3.3.101 (ii), BS7671:2018+A2:2022
